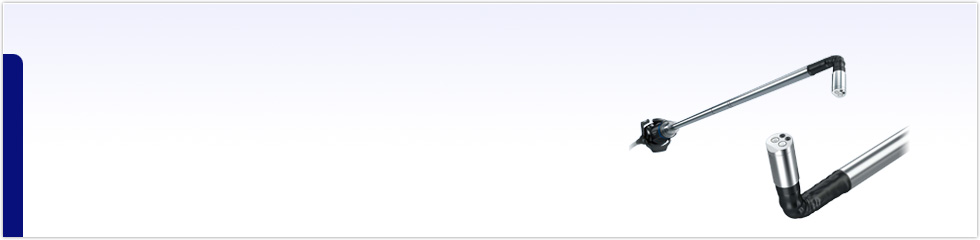

ENDOEYE FLEX 3D Deflectable Videoscope


  • HDTV
  • NBI

Contents start

ENDOEYE FLEX 3D is the only solution that can provide the critical clinical view while maintaining image orientation. A greater depth of field and the optimal amount of depth perception are also realized with the 3D HD image. We are proud to introduce this innovative solution for 3D imaging.

  • Add to Watch List
  • Brochure

HDTV in 3D

The ENDOEYE FLEX 3D utilizes highdensity image sensors at the distal end of the videoscope providing 3D images in high definition.

Angulation (100 degrees)

The ENDOEYE FLEX 3D can bend up to 100 degrees in four directions. This function provides a critical clinical view during surgery while maintaining an optimum and correct visual orientation, which cannot be achieved with conventional rigid telescope and camera head 3D systems.

Focus Free

ENDOEYE technology using distally located image sensors maximizes the 3D benefit by means of a brighter, more light-sensitive image with greater depth of field, while eliminating manual focusing.

Improved speed, accuracy and precision

ENDOEYE FLEX 3D provides improved speed, accuracy and precision independent of skill level, while helping to shorten the learning curve for surgical tasks.

Easy switching of 2D to 3D

The viewing mode is easily switched back and forth between 2D and 3D.

NBI (Narrow Band Imaging) in 2D/3D

NBI enhances visualization of the capillary network and is easily available during surgery in both 2D and 3D.

Optical System Lens system Dual-lens 3D optical structure
Field of view 80°
Direction of view Forward viewing
Depth of field 18-100 mm
Insertion Section Distal end outer diameter 10 mm
Rigid section outer diameter 10 mm
Working length 370 mm
Bending Section Angulation range Up 100°, Down 100°
Right 100°, Left 100°
Total Length   3600 mm
Weight Actual weight when in use 490 g
Remote switch   3 switches in the control section
Cleaning/Disinfection/Sterilization Cleaning/disinfection Immersible in disinfectant solution
Sterilization Sterrad/ETO
EVIS EXERA III Video Processor CV-190

EVIS EXERA III Video Processor


  • HDTV
  • NBI
  • Ground-breaking resolving power for efficient diagnosis
  • Brighter, more powerful Narrow Band Imaging
  • Outstanding, true-to-life image quality
  • Brochure
EVIS EXERA III Xenon Light Source CLV-190

EVIS EXERA III Xenon Light Source


  • NBI
  • One-touch Connector
  • Brighter, more powerful Narrow Band Imaging
  • Improved ergonomics
  • Brochure
