Fiber Bronchoscope

BF-XP60

BF-XP60

Contents start

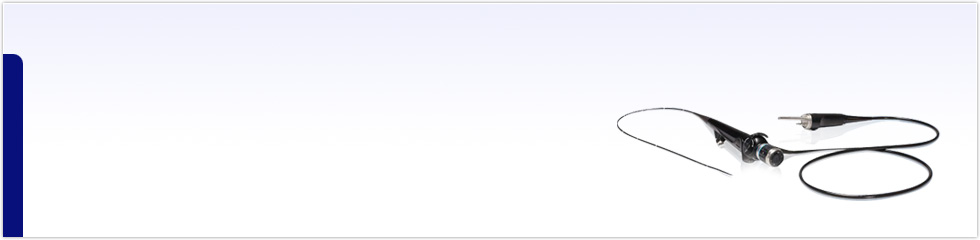

The ultra-thin BF-XP60 OES bronchofiberscope has superb insertion capability. The slender 2.8 mm diameter, 600mm working length insertion tube with excellent up/down angulation enables maneuverability deep into the peripheral bronchi, while the integrated 1.2 mm instrument channel allows use of dedicated slim EndoTherapy devices.

The ultra-thin BF-XP60 OES bronchofiberscope has superb insertion capability. The slender 2.8 mm diameter and short bending radius enables maneuverability deep into the peripheral bronchi, while the wide 90° field of view is adapted to the thin lumina, allowing accurate observation of the tracheobronchial tree. The incorporated 1.2 mm instrument channel is large enough to provide suction or insertion of a range of dedicated slim EndoTherapy devices for efficient diagnostics. This diagnostic bronchoscope for the thinnest lumina is an excellent addition to your endoscopy suite.

  • Add to Watch List
  • Brochure

Slim scope for deepest penetration

The ultrathin 2.8 mm insertion tube has a bending section further reduced in length, enabling improved maneuverability deep into the peripheral bronchi.

Efficient diagnostics

Despite its slim design, the endoscope has a 1.2 mm working channel, large enough to allow use of dedicated sampling and grasping devices.

Great image quality

The BF-XP60 incorporates Olympus’ further developed fibreoptic image bundles providing smooth images with reduced moiré.

Ultra thin insertion tube

The slim 2.8 mm diameter insertion tube enables easy insertion during paediatric bronchoscopy and extended reach during peripheral bronchoscopy.

High maneuverability

The bending section was improved to become shorter und thus considerably improves maneuverability especially in the peripheral bronchi.

Compatible with reprocessing workflows

The BF-XP60 can be embedded in your cleaning and disinfection workflows, supporting full traceability and documentation of all reprocessing relevant phases.
The BF-XP60 is fully compatible with Olympus ETD Washer / Disinfectors and the Olympus Endoscope Drying Cabinet for complete endoscope drying and storage for extended periods under safe conditions.
Olympus endoscopes are able to undergo ETO and plasma sterilisation. For more details on compatible reprocessing, please contact your Olympus representative.

Optical System Field of view 90°
Direction of view 0° (Forward viewing)
Depth of field 2 - 50 mm
Insertion Tube Distal end outer diameter 2.8 mm
Insertion tube outer diameter 2.8 mm
Working length 600 mm
Instrument Channel Channel inner diameter 1.2 mm
Minimum visible distance 1.5 mm from distal end
Bending Section Angulation range Up 180°, Down 130°
Total Length   910 mm
OES Video Conveter OVC-150

OES Video Conveter

OVC-150

  • High image quality CCD
  • Easy connect to fiberscopes
  • Brochure
EVIS EXERA III Xenon Light Source CLV-190

EVIS EXERA III Xenon Light Source

CLV-190

  • NBI
  • One-touch Connector
  • Brighter, more powerful Narrow Band Imaging
  • Improved ergonomics
  • Brochure
LED Light Source CLL-V1

LED Light Source

CLL-V1

  • Powerful Illumination
  • Efficient and eco-friendly
  • Brochure
