Image Management Hub

IMH-20

Image Management Hub 20

Contents start

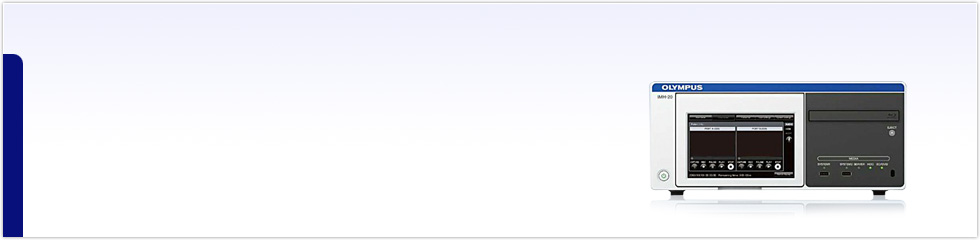

The IMH-20 is a versatile and powerful tool for real-time image recording and capture from up to two sources, enabling recording of simultaneous images separately or as a combined file. Enhanced connectivity puts a wide range of input and output options at your fingertips for maximum image management efficiency and flexibility.

The IMH-20 offers all the benefits of the IMH-10, but with enhanced connectivity and the ability to record two separate signals simultaneously. You can either record the two images as separate files or as a single file so that they can be seen together on the display panel. Real-time recording is possible using Blu-ray, USB HDD or DVD in parallel. While high resolution still images can be captured in JPEG, BMP or TIF formats. This hub also offers synchronised voice recording, which makes the creation of teaching tools, seminar videos or audio-visual reports quick and easy for any user.

  • Add to Watch List
  • Brochure

Touch-panel display

An integrated touch-panel allows real-time recording/capture while watching the monitor image. The panel angle is adjustable for optimal view and comfort.

Two-channel simultaneous recording

Connect two cameras or scopes to the IMH-20 to record images separately or combined. Simultaneous recording onto the HDD and external media is also possible.

System connection

Enhanced connectivity to all Olympus systems offers you a wide range of input and output options, all controllable with the ENDOALPHA central touch screen.

Real-time image recording / capturing

As well as real-time HD recording with Blu-ray, USB HDD or DVD and still image capture in high resolution JPEG, BMP or TIF, the IMH-20 can record two signals simultaneously, in one combined file or two separate files.

Synchronised voice recording

You can record your voice at the same time as capturing the images. With this facility, creating teaching tools, seminar videos or reporting becomes quick and easy for everybody.

Latest high-resolution video compression technology

The latest technology in compression (MPEG-4 AVC H.264) is used to ensure the best image quality.

Printer compatibility

Connect the Olympus printer OEP to your IMH and print your images instantly along with key documentation such as hospital name, date/page/logo, procedure date/time, patient information, doctor’s name, additional information and notes.

Video processor communication

Patient information can be transferred automatically to the IMH from an Olympus video processor and filed with the image in each patient folder. The processor also allows remote control from the buttons of the endoscope or camera head.

Remote control via ENDOALPHA

Connectivity with the medical controller UCES-3 enables automation of your settings and “scene selection” to further improve the workflow and enhance quality. The IMH can also be controlled from a central touch screen in the sterile area.

Video recording format   MPEG-4 AVC/H.264
Still recording format   BMP, TIFF, JPEG
Compatible media   HDD, Blu-ray, DVD, USB device
Internal HDD capacity   500GB
Touch-panel display   7-in. LCD Touch panel
Video input/output jacks HD/SD-SDI INPUT: 2, OUTPUT: 1
DVI INPUT: 2, OUTPUT: 1
Y/C INPUT: 2, OUTPUT: 11
Composite INPUT: 2, OUTPUT: 1
Serial remot   RS232C, stereo mini pin jack
Dimensions (W x H x D)   370 x 167.5 x 413 mm
Weight   Approx. 10.7 kg
Input current   1.9-0.8A
-->
