The Olympus HysteroFlow / HysteroBalance II System provides accurate and easy measurement of fluid balance and intrauterine pressure in a closed system during hysteroscopy, thereby ensuring accurate fluid loss measurements throughout the procedure, ensuring safety and comfort.

The HysteroFlow / HysteroBalance II state-of-the-art hysteroscopic fluid management system for gynaecological procedures offers user and patient safety and comfort in hysteroscopy. The system provides accurate and easy measurement of fluid balance and intrauterine pressure in a closed system, thereby ensuring accurate fluid loss measurements throughout the procedure. The large, simple touch screen ensures easy operator use and clear display of information at all times.

  • Add to Watch List
  • Brochure

Easy handling via touch screen

Easy handling and large touch screen ensure safe procedures with a clear display of required information at all times.

Coded tubings

Decoding of the tubings by HysteroFlow II leads to increased security and patient safety when handling single-use and reusable tubings.

High patient safety

Instrument recognition, and acoustic/visual alarms ensure surgeons are aware of exact patient readings at any time, so maximising patient safety.

One system for hysteroscopy

The HysteroFlow II pump plus HysteroBalance II balancing system together provide an ideal system for hysteroscopy and resection. Exact and reliable fluid management increase patient safety and minimise hyponatraemia risk.

Exact measurement system

Exact measurement of fluid balance is achieved via in- and outflow from two separate weighing cells. A large numeric and symbolic display of current fluid loss ensures the surgical team has a clear view of data.

Easy handling

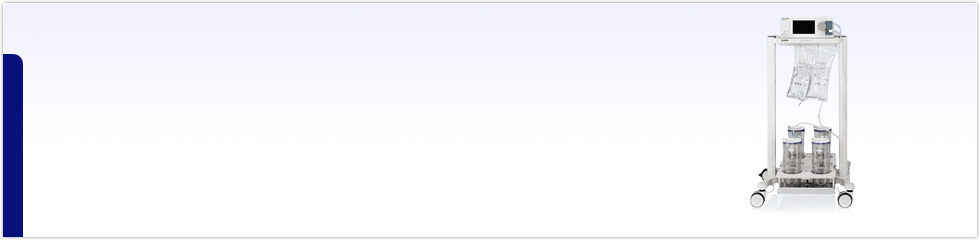

The robust trolley, with a universal container/fluid bag holder, is easy to manoeuvre during procedures, and fluid bags/containers can easily be changed mid-procedure without errors in balancing.

Clear touch screen

A large, clear touch screen ensures safe procedures with a clear display of required information at all times.

Versatile system

The HysteroFlow / HysteroBalance II offers a versatile fluid management system. It is compatible with a variety of fluid bags and containers, and with single-use and reusable tubing sets.

Patient safety

Patient safety is ensured from closed-system fluid loss measurement, accurate pressure monitoring and multiple acoustic/visual alarms.

Partner with OES pro resectoscope for hysteroresection

HysteroFlow / HysteroBalance II and OES pro resectoscope for TCRis (transcervical resection in saline) or monopolar resection offer surgeons the perfect integrated solution for hysteroresection.

HysteroBalance II measuring unit and trolley benefits

Large display of current fluid loss; alarms when fluid loss limit is reached; exact measurement of in- and outflow from two separate weighing cells; and compatible with many containers and fluid bags without additional adapters.

HysteroFlow II pump benefits

Fast, accurate pressure control; automatic instrument recognition; large numeric/symbolic display of intrauterine pressure; visual/acoustic overpressure and perforation alarm; and tubings made from DEHP-free material.

Acts as a standalone pump if required

The HysteroFlow II pump can be used as a standalone pump should the fluid management aspect of the system not be required for a particular procedure.

Main connections Voltage 100-240 V
Frequency 50-60 Hz
Power consumption (max.) 170 VA
Safety Protection class I
Applicationn part type (B, BF, CF) BF
Impact protection IP41 (WA40620A)
IP21 (WA40622A)
Classification IIB
Enviroment Operating conditions 10 to 40 °C
30–75 % rel. humidity
70 to 106 kPa air pressure
3000 m max. altitude above sea level
for device use
Use with flammable anesthetic gases This device is not designed for use with flammable
anesthetic agents (class APG).
Storage and transportation conditions -20 to 70 °C 10 to 90 % rel. humidity 700 to 1060 hPa air pressure
Pump Adjustable values
0.03 to 0.5 l/min
35 to 150 mmHg
Mesurement range
0 to 0.5 l/min
0 to 750 mmHg
±22000 ml
Dimensions Size (Width x Height x Depth)
370 x 157 x 396 mm
640 x 1145 x 655 mm
Max. load
6.1 kg
30 kg
2 x 22 kg
